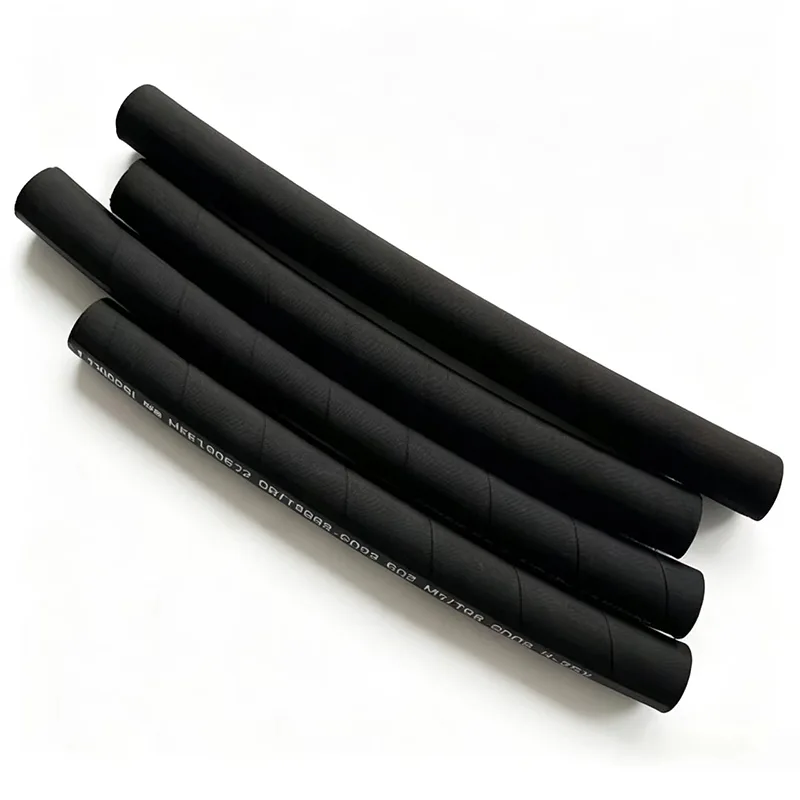

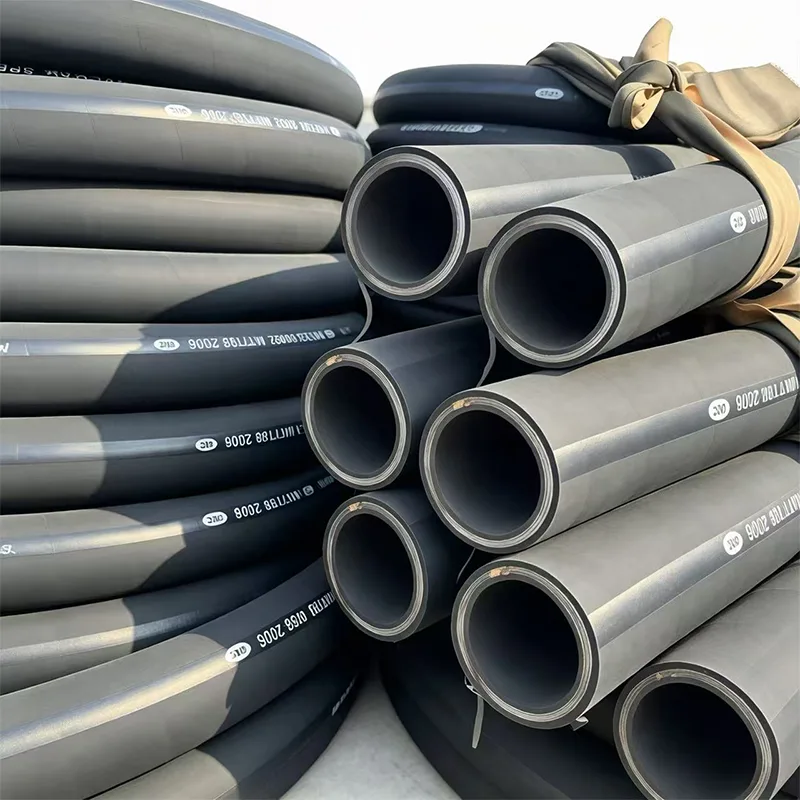

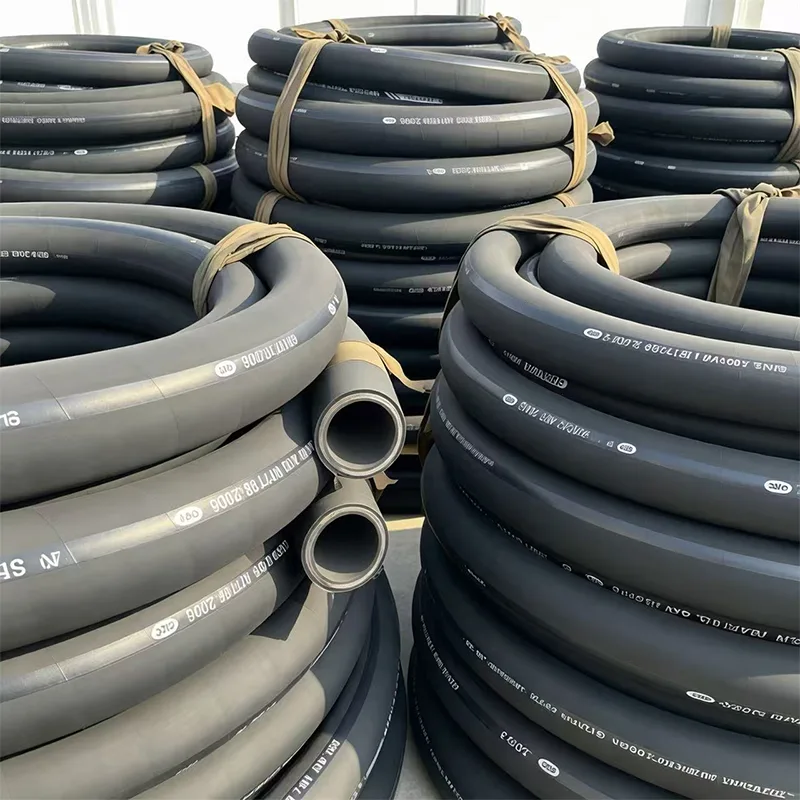

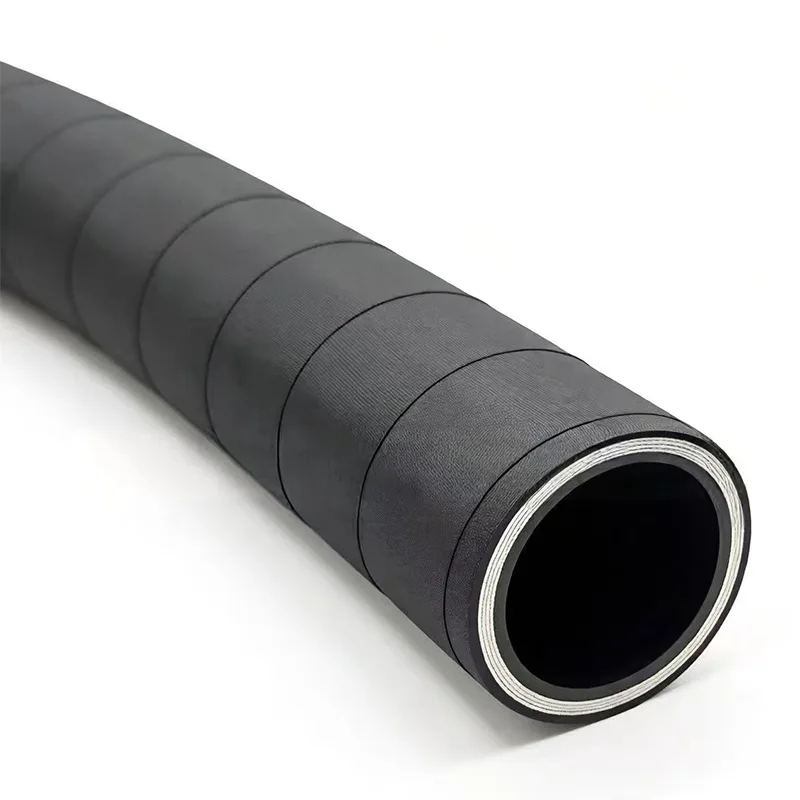

Insulated High-Temperature Resistant Steam Hose

Hengshui Zhehan Rubber & Plastic Products Co., Ltd. has been producing industrial rubber and plastic hoses for years, and this insulated high-temperature resistant steam hose was developed specifically in response to field reports of dangerously hot hose surfaces and premature cover failure on standard steam hose. It combines a heat-resistant EPDM inner tube, a strong steel wire reinforcement layer, and a dedicated insulation layer that brings surface temperatures down. We hold regular stock of common diameters and can supply complete hose assemblies with the end connections your system requires. To request a sample, discuss your steam conditions, or get a formal quotation with lead times, just send us your specifications. We’ll help you make a more informed hose choice.

Core Value

This insulated high-temperature resistant steam hose targets the real problem of heat escaping through the hose wall — which means high surface temperatures, energy waste, and a shorter working life. The insulated design keeps the outer cover cooler, reduces burn risk, and protects the reinforcement from extreme heat, so the hose holds its pressure capability longer. Compared with non-insulated steam hose, customers typically see a 20–35% reduction in hose-related maintenance and replacement costs over time, while improving safety on site.

Where Insulated Steam Hose Makes a Difference

Chemical and process plants: Steam tracing and process heating lines where lower surface temperature protects personnel and nearby equipment.

Metal processing and foundries: Steam blow-off, mold preheating, and hot cleaning — environments where ambient temperatures are already high and hose insulation is a practical safety measure.

Boilers and district heating: Steam distribution lines where the insulation layer helps reduce condensation and heat loss, keeping the system more efficient.

Food and beverage processing: Sterilization, cooking, and clean-in-place steam supplies where cooler hose surfaces add a layer of operator protection.

Municipal and industrial cleaning: Steam and hot-water pressure washing hoses that operators handle directly; the insulation makes the hose safer to touch and move.

Machinery manufacturing: Steam supply to vulcanizers, presses, and steam hammers, where flexibility and thermal protection both matter for uptime and worker safety.

Performance Features

Dual-layer insulation for safer handling

A dedicated thermal barrier is built into the hose structure, measurably lowering the outer surface temperature compared to standard steam hose of the same class. This directly reduces burn risk for people working around the lines and cuts radiant heat in confined plant areas.

Stable pressure strength

Multiple layers of high-tensile steel wire braid provide a working pressure of 1.6 MPa with a burst pressure of 4.8 MPa — a 3:1 safety factor. The reinforcement stays uniformly loaded, resisting bulging and deformation under hot, pressurized operation.

Wide temperature range with high peak tolerance

The EPDM inner tube is rated for continuous service from -40 °C to 210 °C and can handle short-term peaks up to 250 °C. The insulation layer helps maintain the temperature gradient, protecting the reinforcement and cover from the full heat load.

Aging resistance and longer replacement cycles

Inner and outer rubber compounds are formulated to resist steam oxidation, mild chemical attack, and outdoor weathering. Under normal use, the hose lasts roughly 40% longer than ordinary steam hose of similar rating, reducing the frequency of shutdowns for hose changes.

Flexible and installation-friendly

The hose balances stiffness and flexibility so that it bends easily without collapsing. A tight bend radius and good kink resistance make it practical for equipment that moves, tight pipe galleries, and awkward connection points — installation adaptability improves by about 35% over stiffer alternatives.

Leak-free, safe construction

The tube is produced as a seamless, one-piece layer, giving the hose high sealing integrity. Under rated heat and pressure, it resists steam leakage, delamination, and cracking, helping plants maintain safe, compliant operation.

Technical Specifications

Safe Use and Care

Safe operation: Never exceed the rated pressure or temperature. Do not cut or modify the hose structure. Avoid dragging the hose over sharp edges, running it over, or exposing it to open flame — any damage to the insulation layer compromises both safety and hose life.

Extending hose life: After use, drain condensate and clean the hose. Store it flat in a dry, ventilated place away from direct sunlight. Regularly inspect the hose for aging, bulging, or signs of leakage, and replace any worn fittings promptly. Proper storage and inspection can add significant service hours.

Application limits: This hose is built for steam and hot water. Do not use it to convey strong acids, alkalis, or organic solvents unless a specially customized version has been specified. For chemically aggressive environments, contact us to discuss a hose with the right inner tube material.

Frequently Asked Questions

Q: How does the insulation layer actually help on site?

A: It brings the outer cover temperature down to a level that is much safer to work around. That means fewer burn incidents, less radiant heat stress on nearby components, and a hose that can be handled sooner after shutdown. It also reduces heat loss along the line, which can have a small but real impact on energy efficiency.

Q: What is the minimum order quantity?

A: We do not enforce a high minimum. Standard sizes are stocked and you can order as little as a single length for trials. Bulk project orders are handled routinely. Just let us know what you need.

Q: Can I get custom lengths and fitted assemblies?

A: Yes. We supply the hose cut to your exact length and can fit flanges, threaded ends, quick couplings, or other connections. Send us your assembly drawing or specifications and we will quote accordingly.

Q: What warranty do you provide?

A: We provide a 12-month warranty against material and manufacturing defects under normal use. If a covered quality issue occurs, we replace the hose free of charge.

Q: How quickly can you deliver?

A: Stock sizes normally ship within 3 to 7 days. Custom lengths and assembled fittings may take slightly longer. We will confirm the exact lead time along with your quotation.

Q: Can you print our brand and logo on the hose?

A: Yes. We support OEM and private labeling, including custom color, logo printing, and branded packaging.

Q: How do I request a sample or get a quotation?

A: Contact our team by phone or email. Provide your required inner diameter, working pressure, length per piece, and connection type. We will respond with a detailed quotation and can arrange a sample for your evaluation. Hengshui Zhehan is here to help you spec a safer, longer-lasting insulated steam hose.
